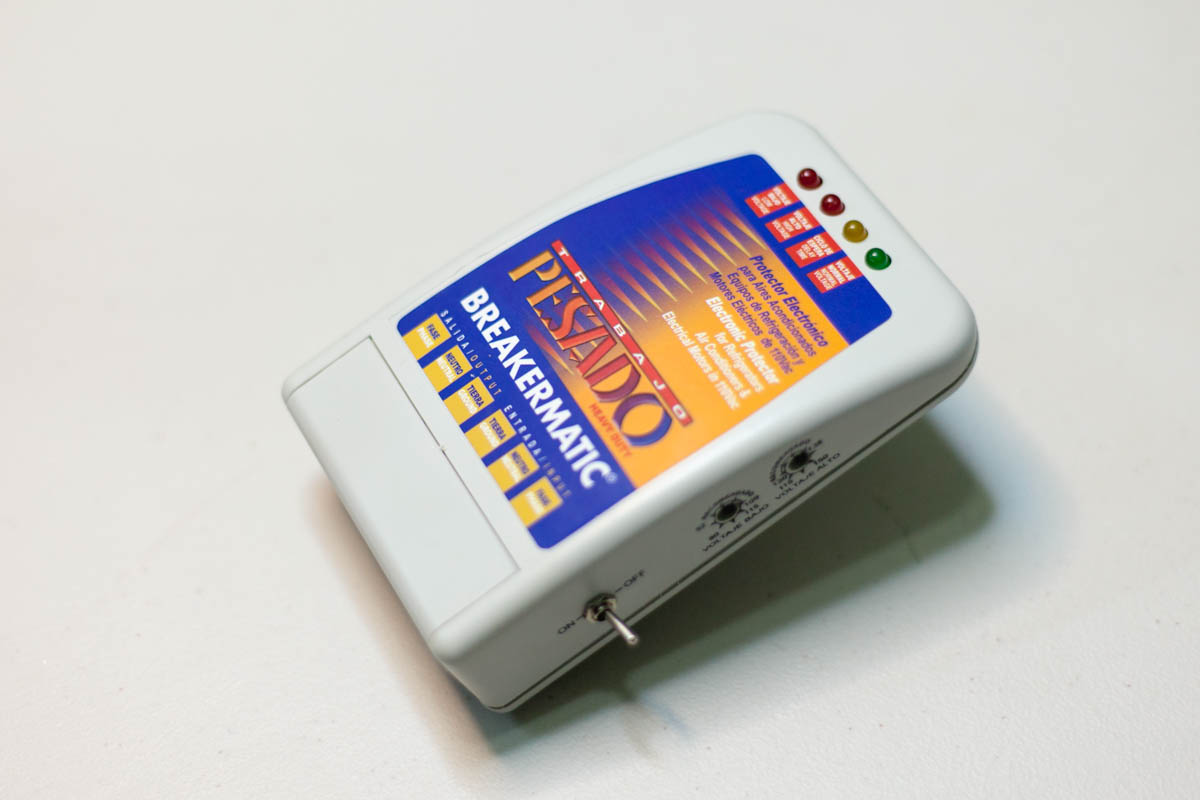

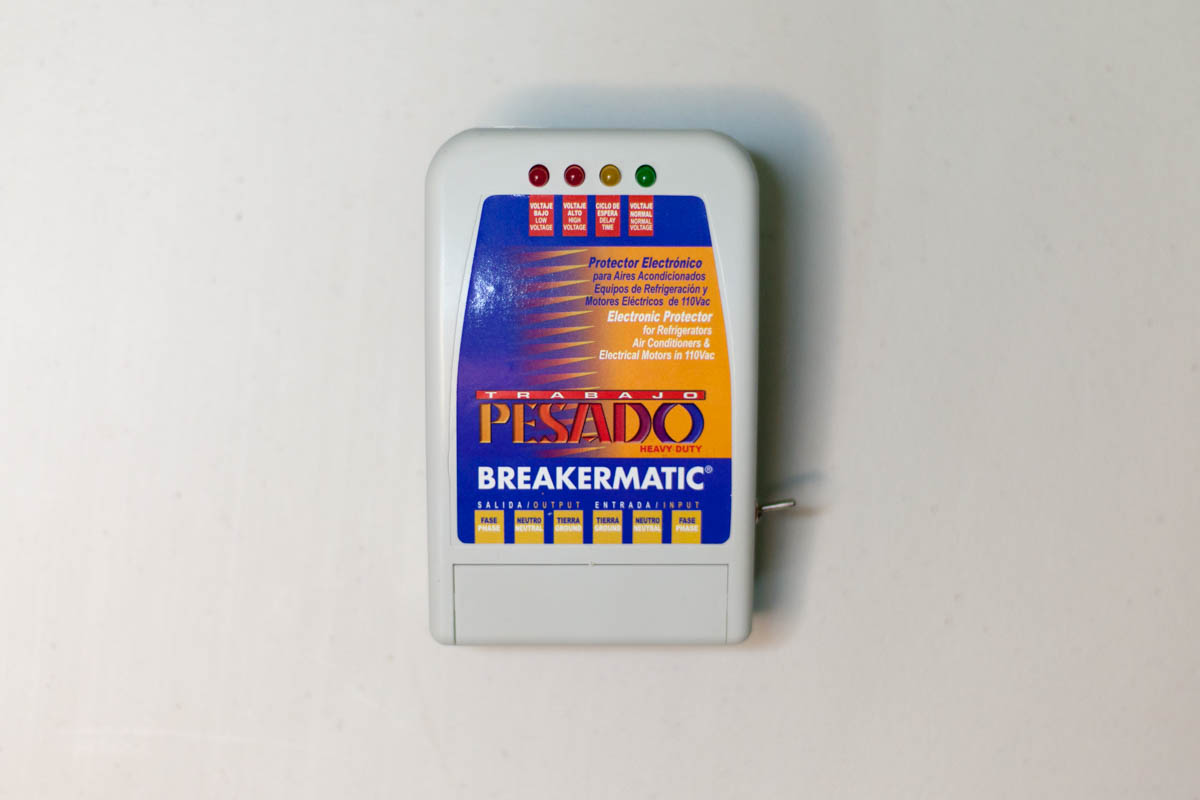

Breakermatic Heavy Duty M 110

33.00

IDEAL FOR: Refrigerators, Air Conditioners and Electrical Motors in 110Vac

MODEL: PBE 110 M00UEM71 (HEAVY DUTY)

With attached wiring terminal block.

  • Current capacity 30 A, 110 V, 1 HP

  • Protect against Voltage Failures and Disturbances

  • Automatic Operation

  • Easy to install

  • Maintenance Free

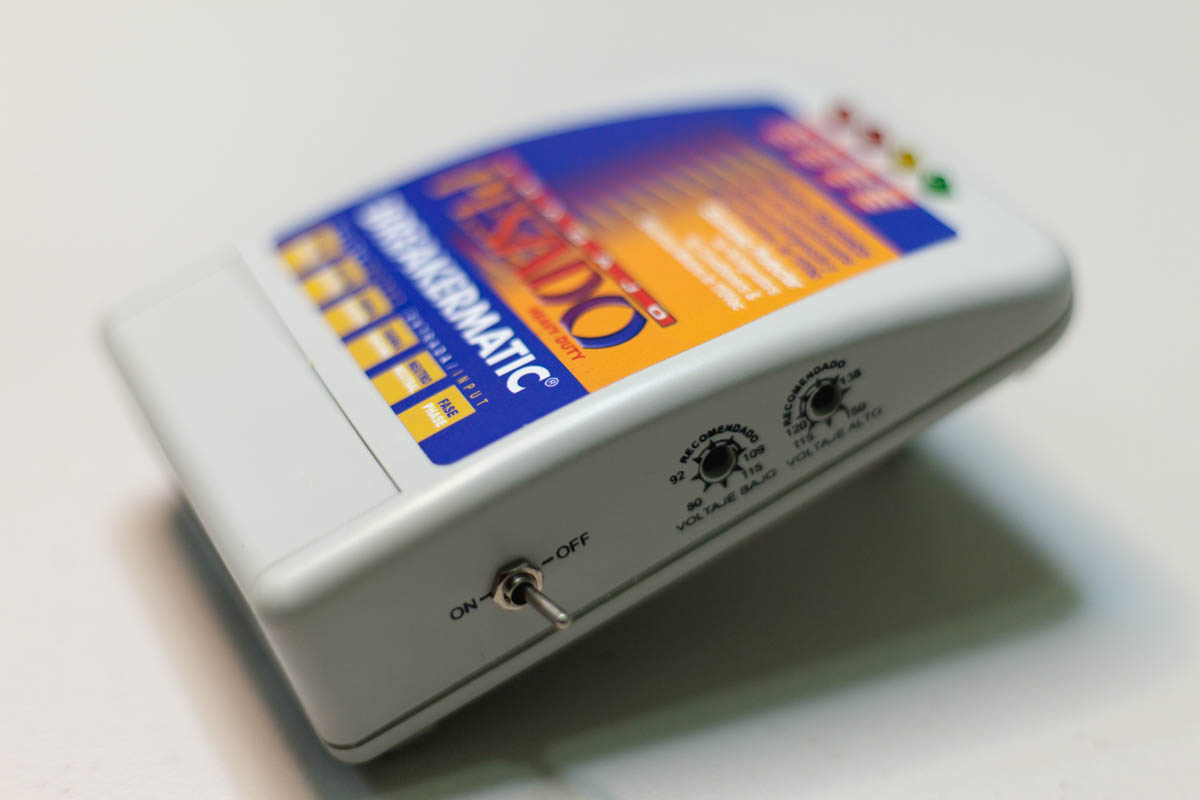

  • Adjustable voltage

  • ON/OFF Switch

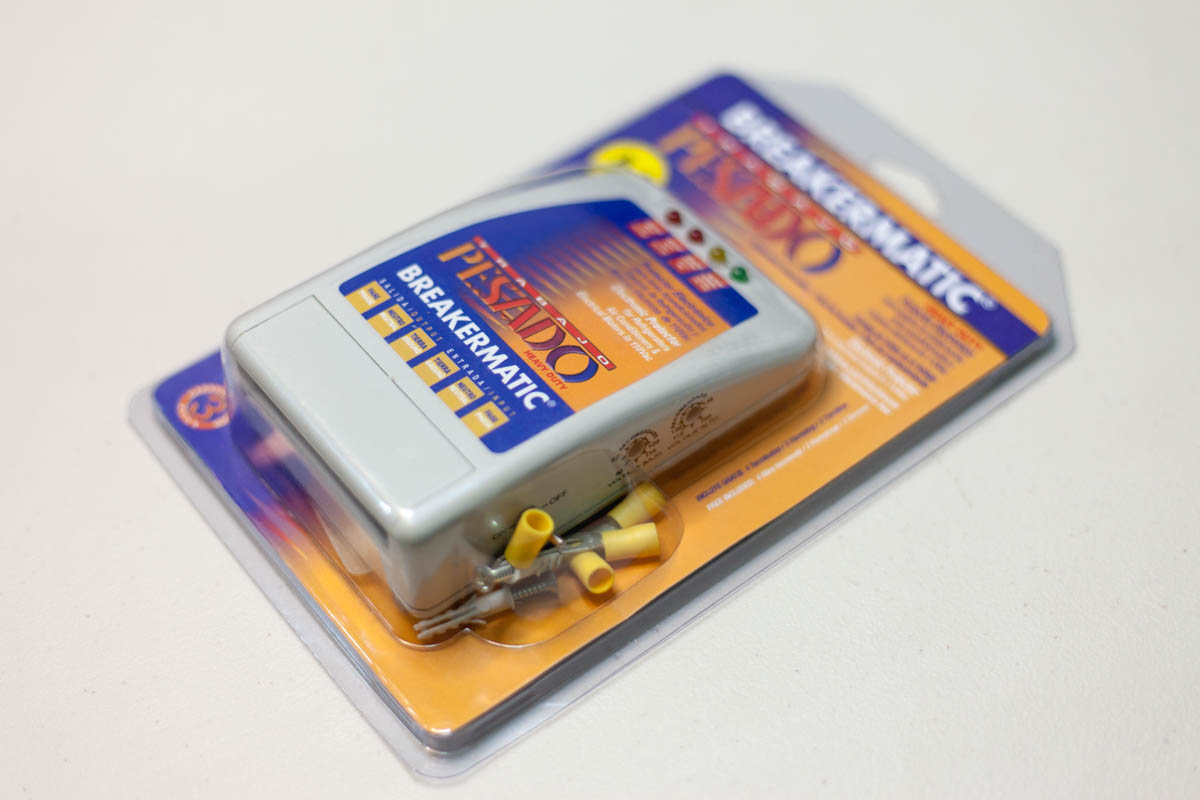

INCLUDED FREE: 4 Wire Terminals

Quantity:
Add To Cart

Additional Info

TECHNICAL SPECIFICATIONS

  • OPERATING VOLTAGE: MIN: 93 +/-2% // MAX 140 +/-2%

  • DELAY CYCLE: 4MIN +/- 20%

  • MAXIMUM OUTPUT: 30A (@FP 1) 1 HP

OPERATION

When you turn on the power, the BREAKERMATIC Heavy Duty performs a 4 minutes DELAY CYCLE. After the delay finishes, the protector turns on the output and the appliance connected t it, signalling the NORMAL VOLTAGE condition. Whenever the voltage goes outside the safe range, the OVER VOLTAGE or UNDER VOLTAGE condition is signalled and the output is turned off. When the voltage returns within the safe range, the DELAY CYCLE is restarted.
