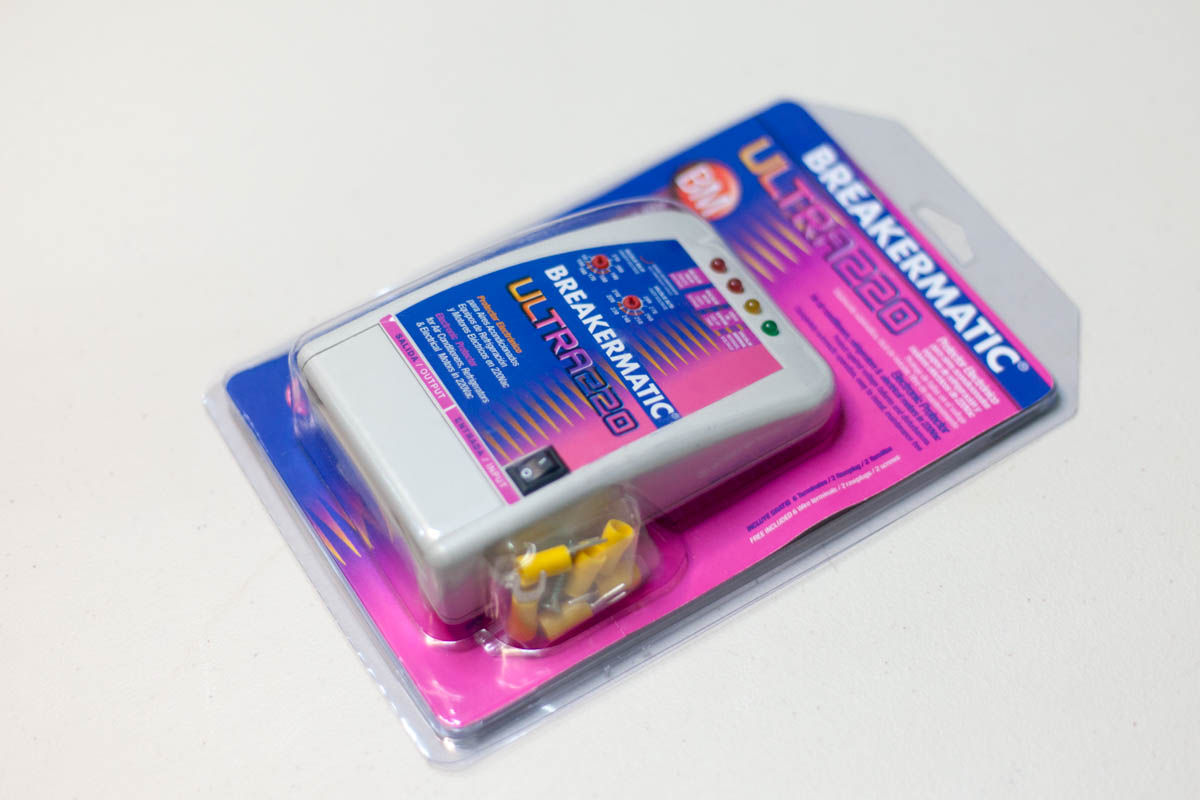

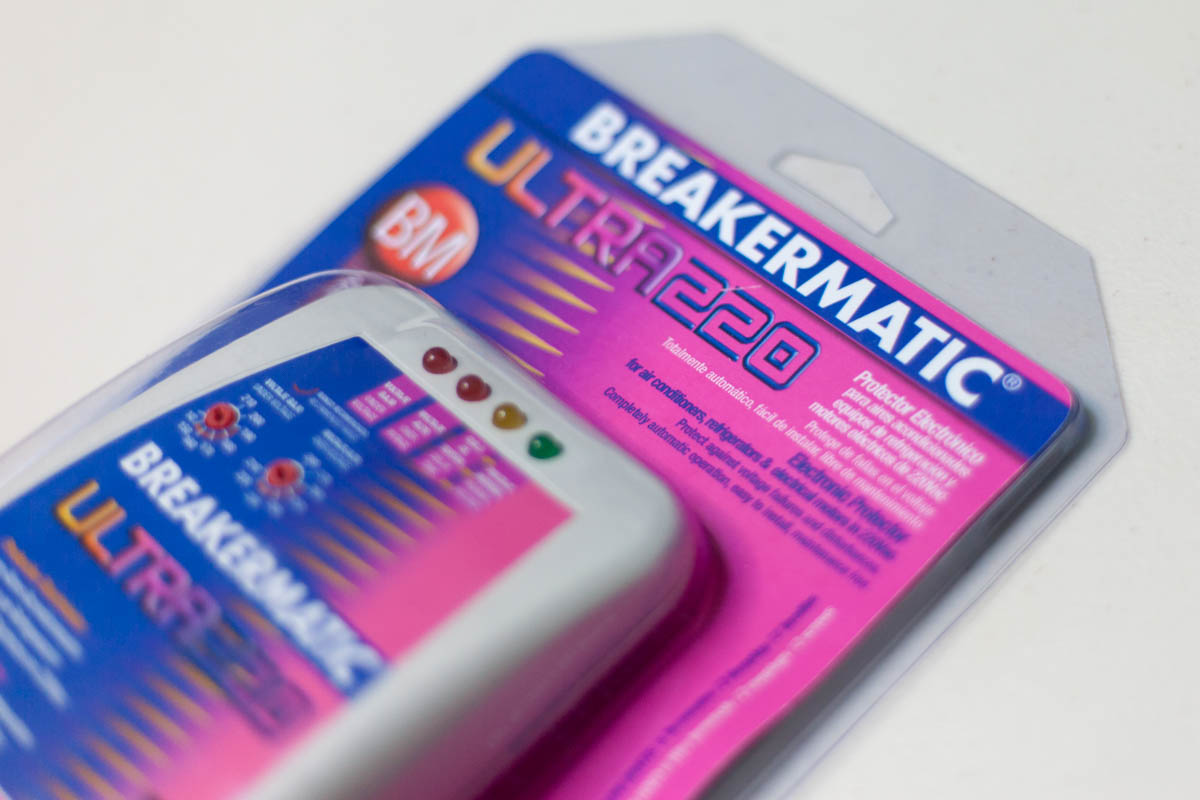

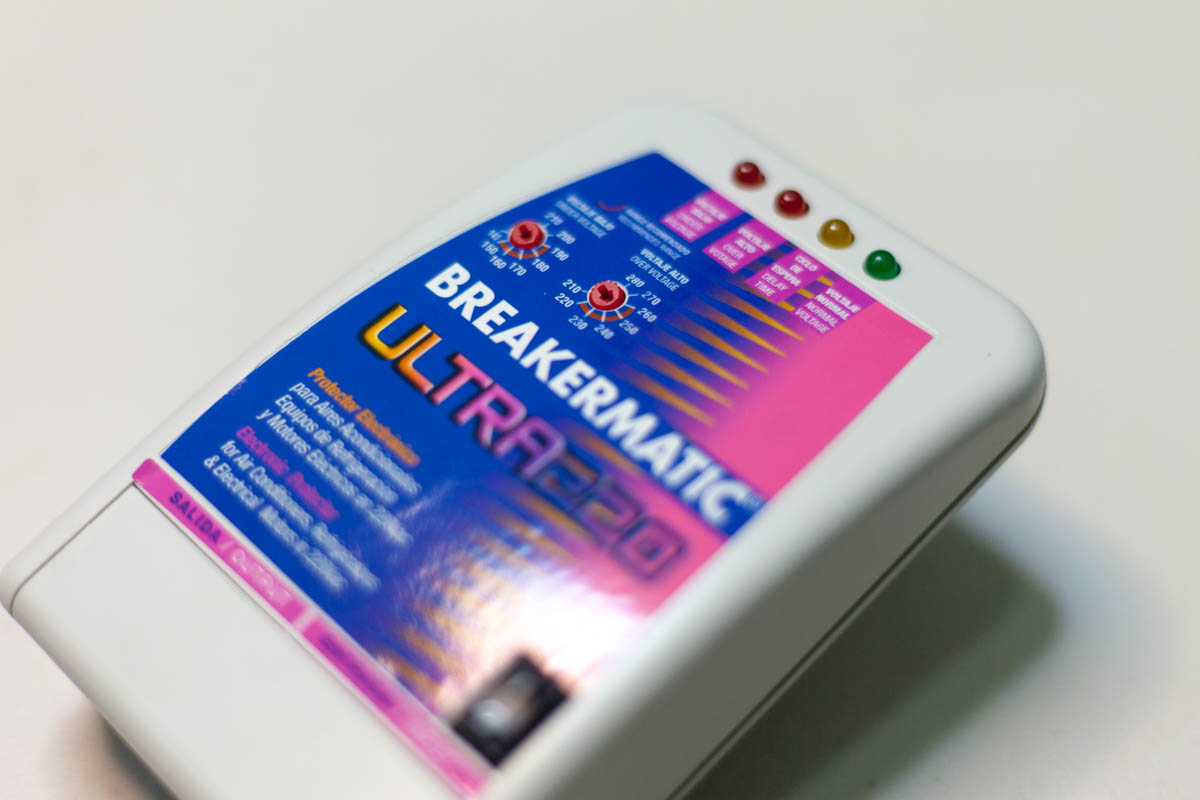

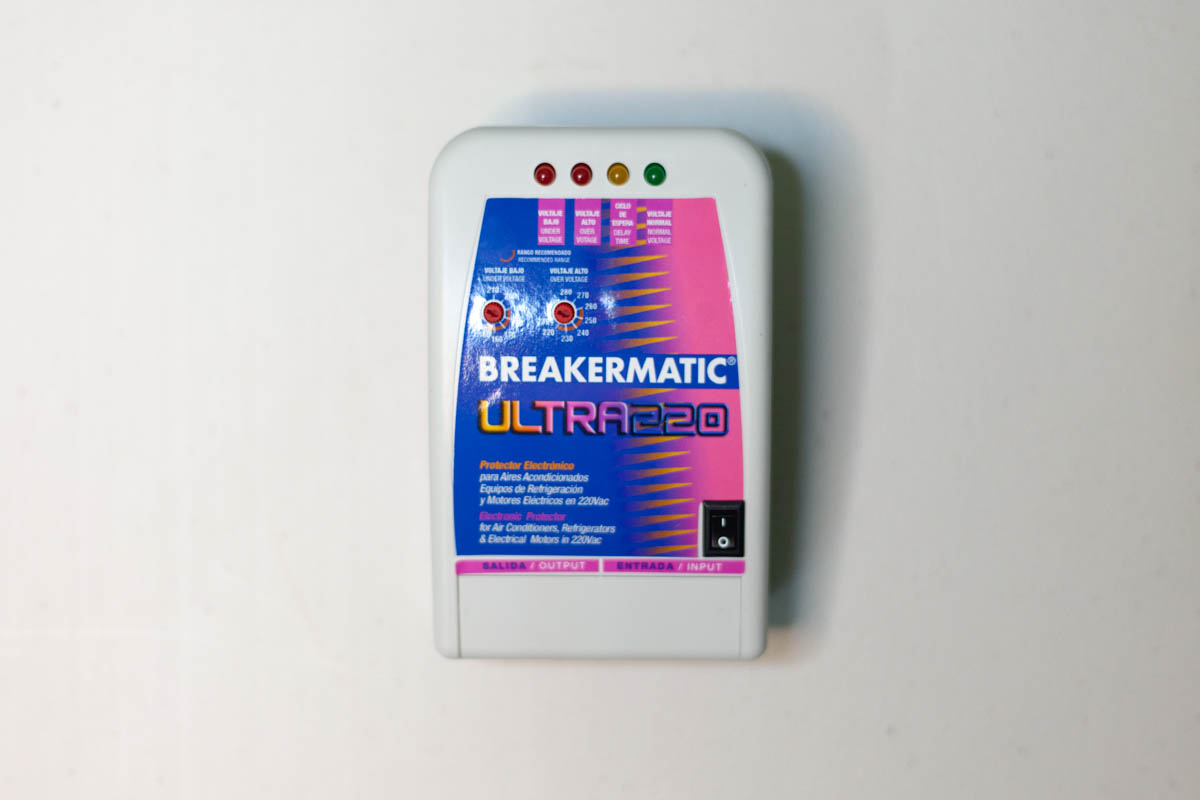

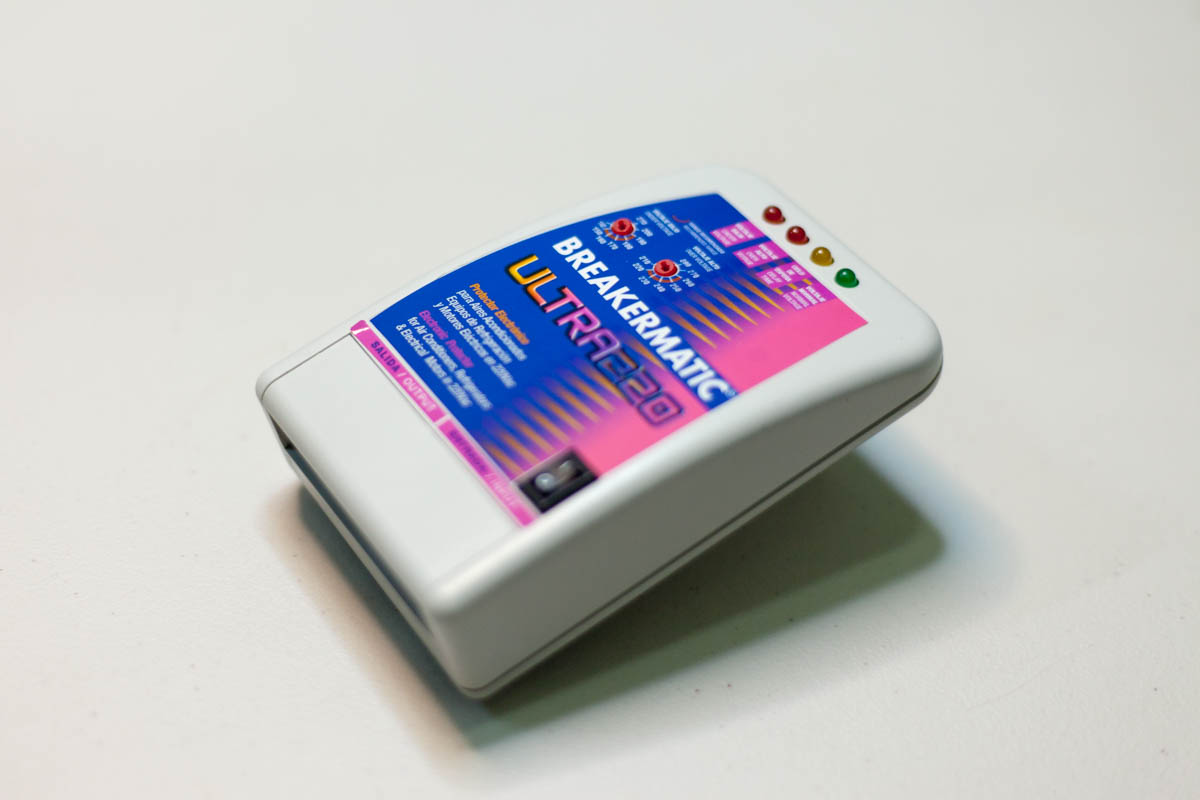

Breakermatic Ultra220 BM

38.00

220Vac Max 30A 30,000 BTU

MODEL: PBE 220-BM0UEM75

With attached wiring terminal block.

IDEAL FOR: Air conditioners (220 VAC), Refrigerators, Freezers, Bottle coolers

Electronic Protector for air conditioners, refrigerators and electrical motors in 220 Vac

Protect against voltage failures and disturbances.

Completely automatic operation, easy to install, maintenance free.

FREE INCLUDED: 6 Wire Terminals

Quantity:
Add To Cart

Additional Info

TECHNICAL SPECIFICATIONS

  • OPERATING VOLTAGE: MIN: 140V-214V 2% // MAX 214V-270V 2%

  • DELAY CYCLE: 4MIN +/- 20%

  • MAXIMUM OUTPUT: 30A (@FP 1) 30,000 BTU 1 1/2HP

OPERATION

When you connect the BREAKERMATIC Ultra 220 for the first time, or after a period of disconnection longer than 10min., it performs a short test of the input line. After a few seconds and if the input voltage is inside the safe voltage range, the BREAKERMATIC Ultra 220 turns on the output and the appliance connected to it signaling the NORMAL VOLTAGE condition. When the power fails for a shorter period (less than 10 min), the BREAKERMATIC Ultra 220 introduces a 4 min delay before turning on the output, signalling the DELAY CYCLE state. In either case, if the voltage goes outside of the safe range, the OVER VOLTAGE or UNDER VOLTAGE condition is signalled, and the output is turned off. When the voltage returns within the safe range, the DELAY CYCLE is restarted.
